Non Destructive Testing // Equipment & Accessories

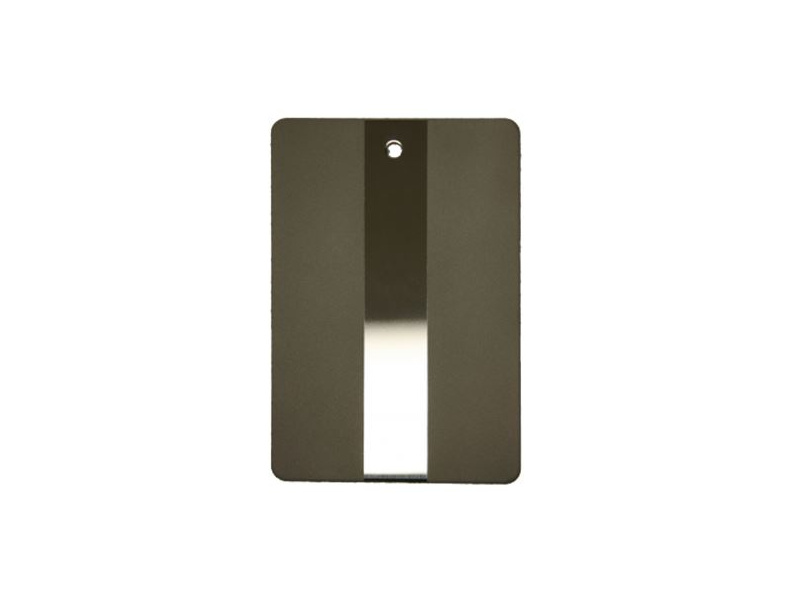

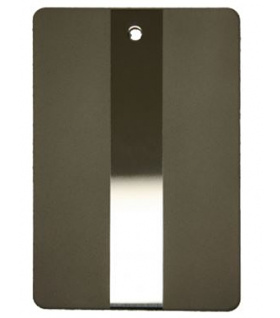

Sherwin WTP-1 Wash Test Panel
  • Used to determine the intrinsic level of background fluorescence in a penetrant system
  • Easy to clean
  • Complies with MIL-STD-6866 and ASTM E-1417

Description

The Sherwin Wash Test Panel is used to determine the intrinsic level of background fluorescence in a penetrant system.

SPECIFICATIONS

Stainless steel panel measuring 4 x 6 inches and 0.090 inches thick with two parallel, “medium rough” strips, each 6 x 1 1/2 inches separated by a smooth 1-inch strip. The wash panel is used to meet monthly removability testing required by MIL-STD-6866 and ASTM E-1417).

SPECIFICATION COMPLIANCE

• MIL-STD-6866
• ASTM E-1417

Ordering Info

CodePackaging
WTP-1 Sherwin WTP-1 Wash Test Panel
