Magnetic Flux Indicator Strips
Type 1 (Engineering) and Type 2 (Aerospace)
  • Adequate field strength and direction
  • Proper illumination
  • Appropriate magnetic particle properties
  • Simple to use as a comparative tool in the field

Description

Magnetic Flux*Indicator Strips are a simple-to-use, inexpensive and effective tool that provides the technician with the assurance that they are performing an effective magnetic particle test. They can also be used to give an estimate of the field strength across surfaces magnetised in the application of Magnetic Particle Inspections.

SPECIFICATIONS

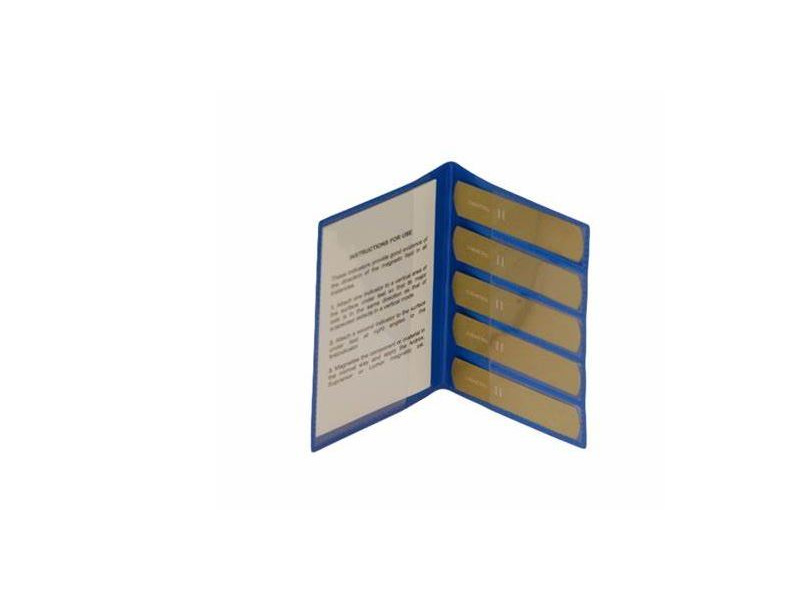

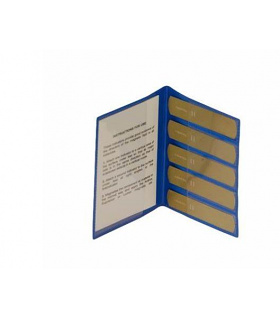

Magnetic Flux Indicator Strips are supplied in a package of 5, includes basic instructions

Type G (Type 1) Slot widths: 0.019mm, 0.023mm, 0.25mm

Type A (Type 2) Slot widths: 0.08mm, 0.10mm, 0.13mm



SPECIFICATION COMPLIANCE

• ASTM E709-08
• ASTM E1444/E1444M-12

Ordering Info

CodePackaging
MAGSTIP-G Type 1 Engineering
MAGSTIP-A Type 2 Aerospace
